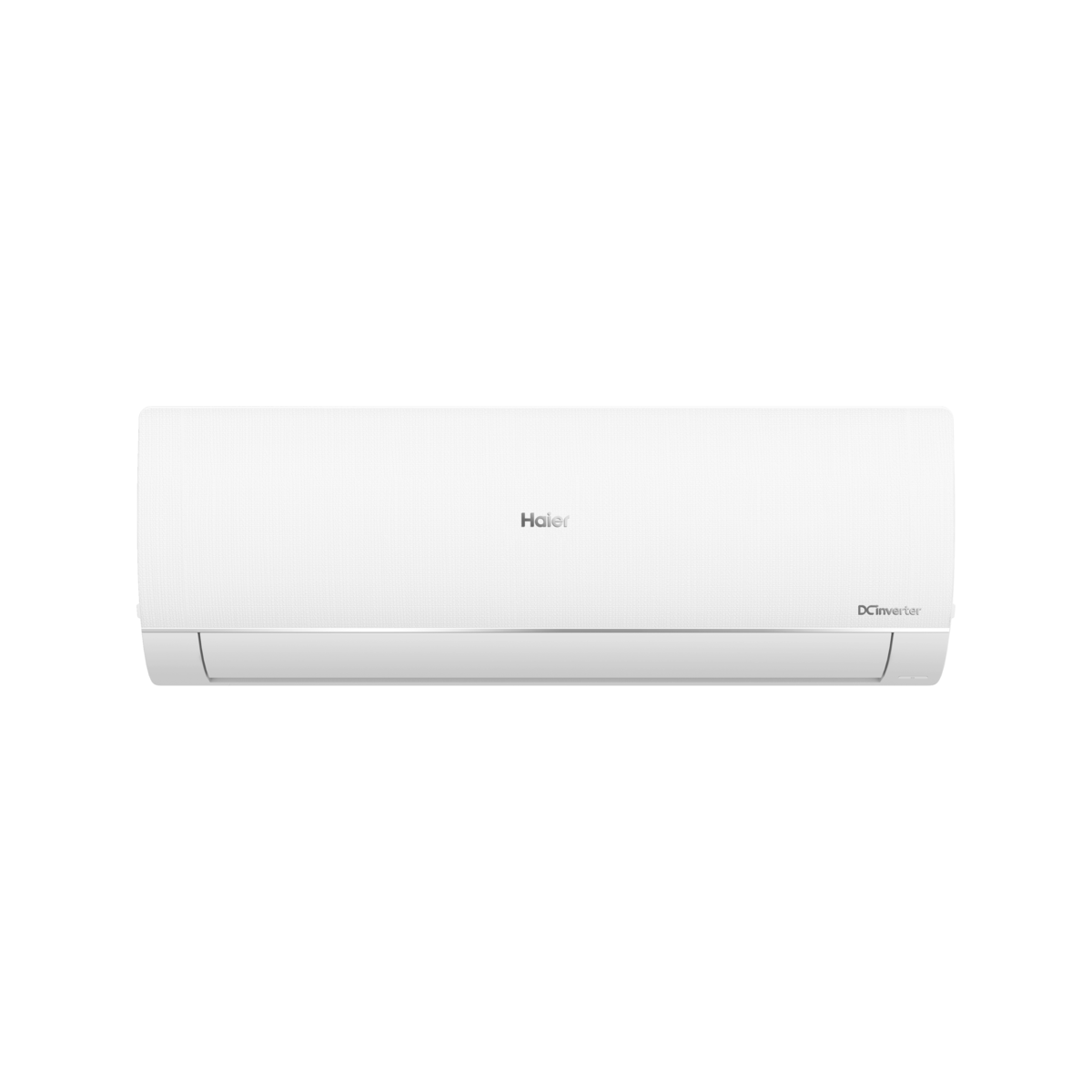

Haier HSU‑24HFAB 2 Ton T3 Inverter Split AC – Turbo Cooling – WiFi Enabled

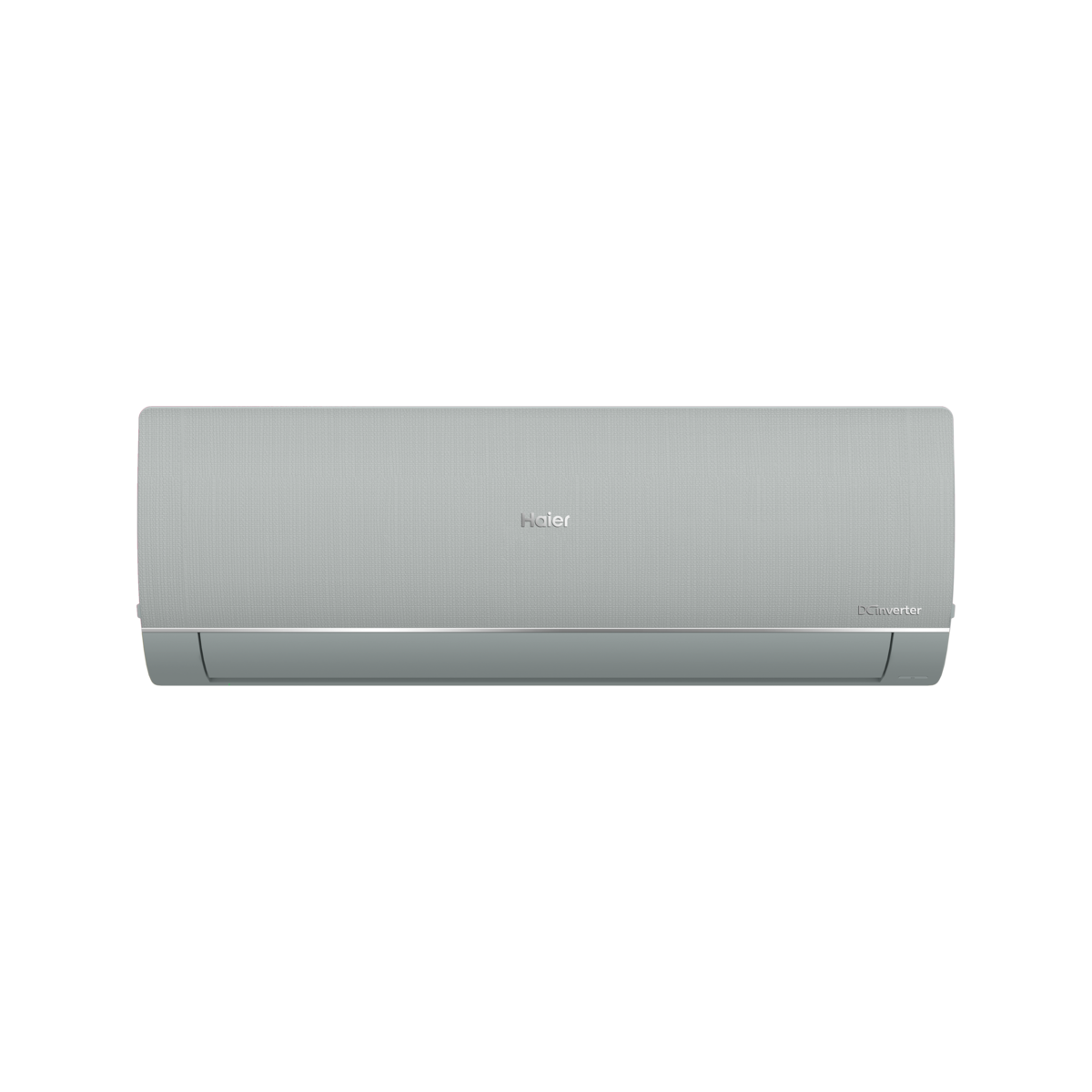

Haier HSU-24HFAB/013WUSDC-T3 2 Ton T3 Inverter Split AC – White & Grey (Heat & Cool)

Performance Specifications

• Capacity: 2 Ton
• Compressor Type: T3 DC Inverter
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 25,000 BTU
• Cooling Current: 2.4 – 9.8 A
• Power Input (Cooling): 0.55 – 2.14 kW
• Heating Current: 2.7 – 11.9 A
• Power Input (Heating): 0.56 – 2.62 kW

Technical & Airflow Details

• Power Supply: 1PH, 230V~, 50Hz
• Air Flow Volume: 1,150 m³/h
• Refrigerant: R‑32 (approx. 1,300 g)

Indoor & Outdoor Unit Details

• Indoor Dimensions: 1,015 × 325 × 225 mm (Net Weight: 14.5 kg / Gross: 17.5 kg)
• Outdoor Dimensions: 820 × 310 × 630 mm (Net Weight: 40 kg / Gross: 43.5 kg)

Key Features

• Heat & Cool Functionality
• Dry Mode
• Vertical & Horizontal Auto Swing
• WiFi Enabled Smart Control
• Self-Clean Condenser & Anti-Corrosion Coating
• Turbo Cooling Feature
• ECO Energy-Saving Mode

Installation Accessories

• Liquid Pipe: Copper, 2,920 mm × 6 mm × 0.65 mm
• Gas Pipe: Copper, 2,920 mm × 12 mm × 0.65 mm
• Power Cable: 3 × 2.5 mm²
• Communication Cable: 4 × 2.5 mm²

Warranty

• Compressor: 10 Years
• PCB Kit: 4 Years
• Evaporator: 3 Years
• Other Parts: 1 Year
