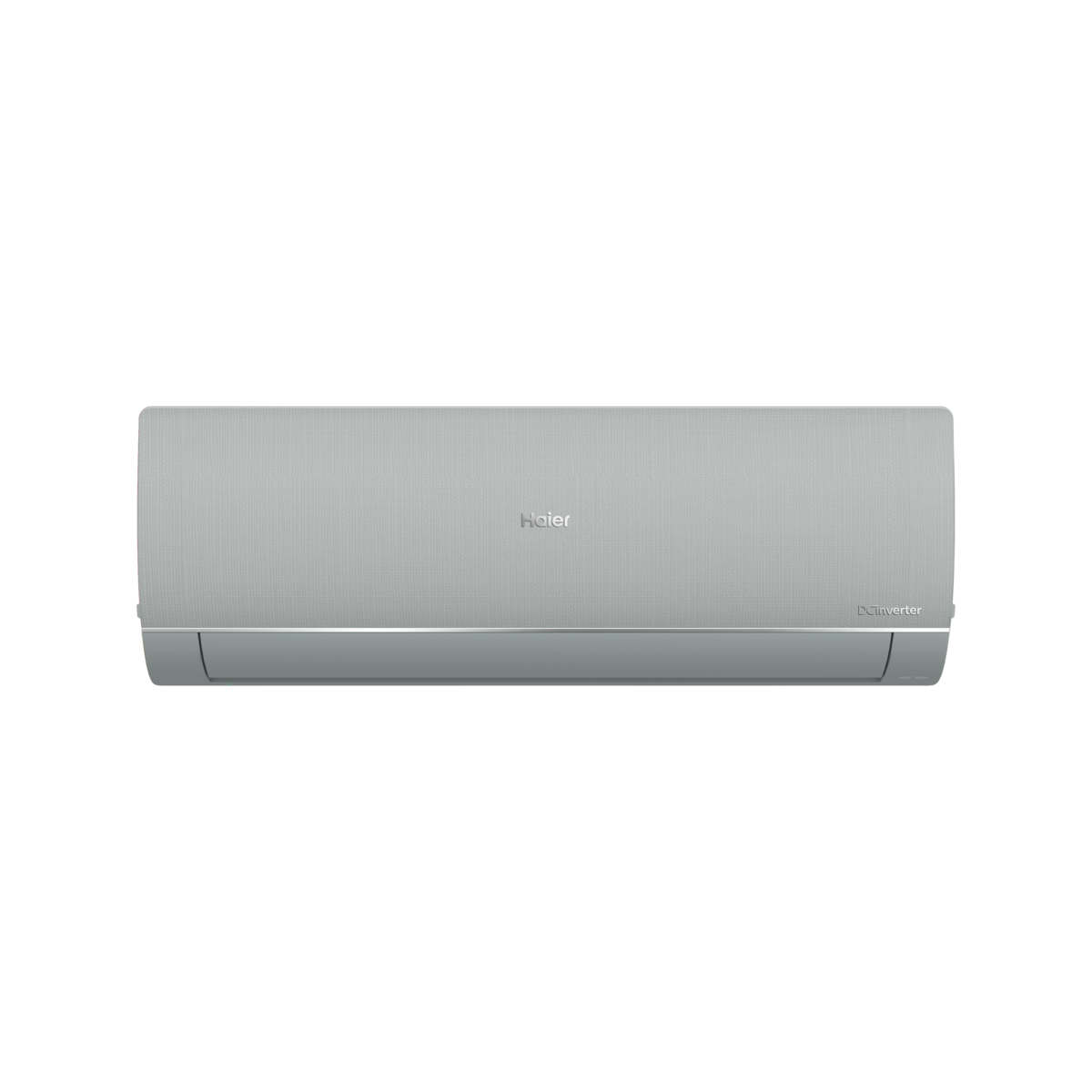

Haier HSU-14HFTEX 1 Ton DC Inverter AC Heat & Cool – T3 Compressor – 2025 Model

Haier (T3 Plus Series) 1 Ton DC Inverter – HSU-14HFTEX – T3 Compressor

Performance Specifications

• Capacity: 1 Ton
• Category: DC Inverter
• Color: Ocean White & Grey
• Cooling Capacity (BTU): 14,500
• Cooling Current (A): 1.6 ~ 5.3
• Cooling Power Input (KW): 0.36 ~ 1.19
• Heating Capacity (BTU): 14,700
• Heating Current (A): 1.6 ~ 6.0
• Heating Power Input (KW): 0.57 ~ 1.35

Other Parameters

• Input Power Supply: 1PH, 230V~, 50Hz
• Air Flow Volume: 750 m³/h
• Refrigerant Type: R-32
• Refrigerant Amount: 800g

Indoor Unit Dimensions & Weight

• Dimensions (mm): 850 x 295 x 210
• Packing Dimensions (mm): 952 x 389 x 283
• Net Weight: 11.5 kg
• Gross Weight: 14.1 kg

Outdoor Unit Dimensions & Weight

• Dimensions (mm): 800 x 345 x 560
• Packing Dimensions (mm): 908 x 405 x 625
• Net Weight: 28 kg
• Gross Weight: 31 kg

Key Features

• Cooling
• Heating
• Dry Mode
• Vertical Flapper Auto Swing
• Horizontal Louvers Auto Swing
• WiFi Enabled
• Self-Clean Function
• Anti-Corrosion Protection
• Turbo Function
• ECO Mode

Accessories

• Installation Kit (Liquid Side): Copper, 2920mm x 6mm x 0.65mm
• Installation Kit (Gas Side): Copper, 2920mm x 12mm x 0.65mm
• Power Cable: 3 x 2.5 mm²
• Communication Cable: 4 x 2.5 mm²

Warranty

• Compressor: 10 Years
• PCB Kit: 4 Years
• Evaporator: 3 Years
• All Parts: 1 Year
